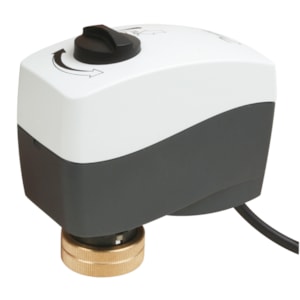

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 140, 12 s/mm, 5.5 mm - C/N 082H8047

Gross weight

0.4 Kilogram

Net weight

0.364 Kilogram

Volume

0.974 Liter

EAN

5702421552056

Type

AME 140

Product group

Gear actuators

Actuator speed [s/mm]

12 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

fan coils

Cable length [m]

1.5 m

China RoHS compliance

Out of scope

Closing force [N]

200 N

Contains batteries

No

Control input signal Y [mA]

0 - 20 mA

Control input signal Y [V]

0 - 10 V

Control signal type

Modulating

Description

AME 140 H 24V 12s/mm 5,5mm 200N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Grade of enclosure

IP42

Manual operation

Yes

Position feedback

yes

Power consumption [W]

1 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

5941c580-cf9b-456d-b3c6-52adde56771d

SCIP dossier product name

AMV (E) 130 - 150

Speed type

Standard

Spindle speed [s/mm]

12 s/mm

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

5.5 mm

Supply voltage [V] AC

24 V

Turn time per 90° [s]

0 "
