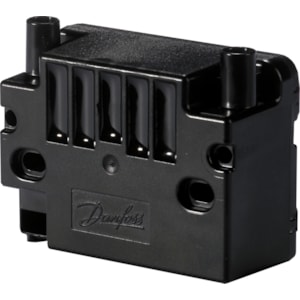

BIẾN THẾ ĐÁNH LỬA DANFOSS EBI4 M - C/N 052F4265

Gross weight

0.249 Kilogram

Net weight

0.236 Kilogram

Volume

0.283 Liter

EAN

5702425120602

Type

EBI4 M

Product group

Ignition Units

Ambient temperature [°C] [max]

60 °C

Ambient temperature [°C] [min]

-10 °C

Approval

CE; UKCA

CE mark

Yes

China RoHS compliance

Yes

Contains batteries

No

Description

EBI4 M STD. STD. IGNITION UNIT 230 V OEM

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c); 7(c)-I

Grade of enclosure primary

IP40

Housing

Standard

Main fuse [A] [Min]

10 A

Packing format

Industrial pack

Power consumption [VA]

60 VA

Primary current [A]

0.25 A

Primary frequency [Hz]

50/60

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

27c02f0b-4bf3-4159-b23b-0589ec23470c

SCIP dossier product name

Ignition unit EBI4 1P

Secondary connection, short circuit current [mA]

40 mA

Secondary peak voltage [kV]

2 x 7.5

Storage temperature [°C] [Max]

85 °C

Storage temperature [°C] [Min]

-25 °C

Supply voltage [V] AC

230 V

Supply voltage [V] AC [max]

255 V

Supply voltage [V] AC [min]

187 V

UL mark

No
