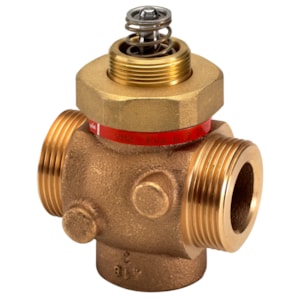

VAN DANFOSS VM 2, PN 25, DN 32, 10 m³/h, G 1 3/4 A - C/N 065B2029

Mã sản phẩm: 065B2029

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VM 2, PN 25, DN 32, 10 m³/h, G 1 3/4 A - C/N 065B2029

Product details

Application	District Heating
Application alternative VSP	Heating
Cavitation factor	0.5
Cavitation factor 100%	0.34
Cavitation factor 25%	0.58
Cavitation factor 50%	0.52
Cavitation factor 75%	0.5
China RoHS compliance	Out of scope
Connection size	G 1 3/4 A
Connection types	External Thread
Contains batteries	No
Control ratio	50:1
Description	VM 2 PN25 32/10 2-way ext. thr 1 3/4
Diameter [mm]	32 mm
Differential pressure range [bar] [Max]	25 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Split
Function	Pressure relief
Kvs values [m³/h]	10 m³/h
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure nominal [bar]	25 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	40bb988f-c8d6-4ef3-a8ac-582af84f370f
SCIP dossier product name	VM2 (1)
Spindle position	Normally open
Stroke [mm]	7 mm
Stuffing box sealing material	EPDM
Valve body material	Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material	Stainless steel
Valve seat material	Stainless steel
Valve size	DN 32
Valve stem material	Stainless steel
