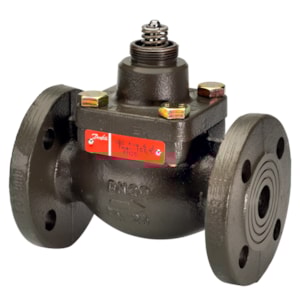

VAN DANFOSS VB 2, PN 25, DN 15, 1 m³/h, Flange - C/N 065B2053

Mã sản phẩm: 065B2053

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VB 2, PN 25, DN 15, 1 m³/h, Flange - C/N 065B2053

Product details

Application	District Heating
Application alternative VSP	Heating
Cavitation factor	0.5
Cavitation factor 100%	0.34
Cavitation factor 25%	0.58
Cavitation factor 50%	0.52
Cavitation factor 75%	0.5
China RoHS compliance	Out of scope
Connection types	Flange
Contains batteries	No
Control ratio	50:1
Description	VB 2 PN25 15/1 2-way seated flange
Diameter [mm]	15 mm
Differential pressure range [bar] [Max]	16 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Split
Kvs values [m³/h]	1 m³/h
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure nominal [bar]	25 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	c1bed416-811c-4b17-aef7-acc189e27b8f
SCIP dossier product name	VB 2 PN25 x/x 2-way seated flange
Spindle position	Normally open
Stroke [mm]	5 mm
Stuffing box sealing material	EPDM
Valve body material	Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material	Stainless steel
Valve seat material	Stainless steel
Valve size	DN 15
Valve stem material	Stainless steel
