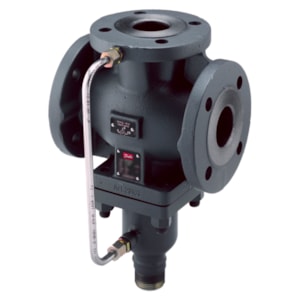

VAN DANFOSS VFG 33, PN 25, DN 32, 12.5 m³/h, Flange - C/N 065B2607

Mã sản phẩm: 065B2607

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VFG 33, PN 25, DN 32, 12.5 m³/h, Flange - C/N 065B2607

Product details

Application	District Heating
Cavitation factor	0.55
China RoHS compliance	Out of scope
Connection types	Flange
Contains batteries	No
Control ratio	1:50
Description	VFG33 PN25 32/16 3-way flange flow/ret
Diameter [mm]	32 mm
Differential pressure range [bar] [Max]	18 bar
EU RoHS compliance	Out of scope
Flow characteristic	Linear
Function	Pressure relief
Function 2	Mixing valve
Kvs values [m³/h]	12.5 m³/h
Leakage bypass port max. [% Kvs]	0.05 %
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	200 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Free
Number of ports	3
Permissible media	District heating/cooling circulation water
Pressure class	PN 25
Pressure nominal [bar]	25 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Spindle position	A-AB: Normally closed
Stroke [mm]	8 mm
Valve body material	Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material	Stainless steel, mat. No. 1.4404
Valve seat material	Stainless steel, mat. No. 1.4021
Valve size	DN 32
