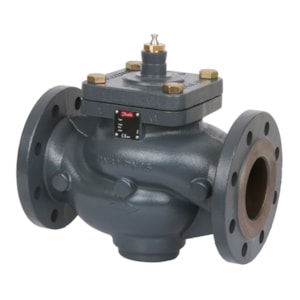

VAN DANFOSS VFM 2, PN 16, DN 250, 900 m³/h, Flange - C/N 065B3506

Mã sản phẩm: 065B3506

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VFM 2, PN 16, DN 250, 900 m³/h, Flange - C/N 065B3506

Product details

Application	District heating and cooling
Application alternative VSP	Heating
Cavitation factor	0.3
Cavitation factor 100%	0.14
Cavitation factor 25%	0.24
Cavitation factor 50%	0.22
Cavitation factor 75%	0.21
China RoHS compliance	Out of scope
Connection types	Flange
Contains batteries	No
Control ratio	100:1
Description	VFM 2 DN250 kvs 900 PN16 2-way flange
Diameter [mm]	250 mm
Differential pressure range [bar] [Max]	5 bar
EU RoHS compliance	Out of scope
Flow characteristic	Logarithmic
Function	Pressure relief
Kvs values [m³/h]	900 m³/h
Leakage through port max. [% Kvs]	0.03
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	-10 °C
Medium alternative	Glycolic water up to 50%
Mounting version	Flow
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure class	PN 16
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Spindle position	Normally open
Stroke [mm]	50 mm
Valve body material	Grey cast iron EN-GJL-250 (GG-25)
Valve cone material	Stainless steel
Valve size	DN 250
