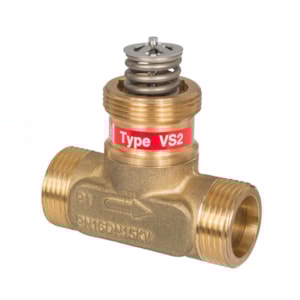

VAN DANFOSS VS 2, PN 16, DN 15, 1.6 m³/h, G 3/4 A - C/N 065F2115

Mã sản phẩm: 065F2115

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VS 2, PN 16, DN 15, 1.6 m³/h, G 3/4 A - C/N 065F2115

Product details

Application	District Heating
Application alternative VSP	Heating
Cavitation factor	0.5
Cavitation factor 100%	0.34
Cavitation factor 25%	0.58
Cavitation factor 50%	0.52
Cavitation factor 75%	0.5
China RoHS compliance	Out of scope
Connection size	G 3/4 A
Connection types	External Thread
Contains batteries	No
Control ratio	1:50
Description	VS 2 PN16 15/1,6 2-way seated ext. thr
Diameter [mm]	15 mm
Differential pressure range [bar] [Max]	10 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Linear
Kvs values [m³/h]	1.6 m³/h
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	130 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure class	PN 16
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	b8dc27b2-17a4-4373-ad5a-11c65acf7795
SCIP dossier product name	VS2 (1)
Spindle position	Normally open
Stroke [mm]	4 mm
Valve body material	Dezincing free brass
Valve cone material	Stainless steel
Valve size	DN 15
