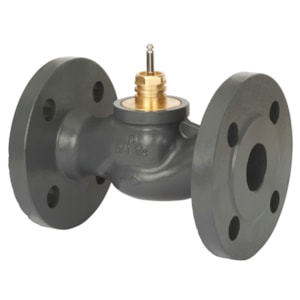

VAN DANFOSS VF 2 PN16 100/145 2-way seated flange - C/N 065B3205

Gross weight

44.8 Kilogram

Net weight

40.4 Kilogram

Volume

88.8 Liter

EAN

5702421510964

Type

VF 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VF 2 PN16 100/145 2-way seated flange

Diameter [mm]

100 mm

Differential pressure range [bar] [Max]

1.5 bar

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Kvs values [m³/h]

145 m³/h

Leakage through port max. [% Kvs]

0.05

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

db8884b3-dc94-4e5e-97b4-8e421697e20c

SCIP dossier product name

065B3205

Stroke [mm]

30 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Red bronze CuSn5Zn5Pb5 (Rg 6)

Valve stem material

Stainless steel
