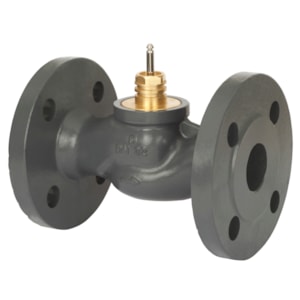

VAN DANFOSS VF 2 PN16 150/320 2-way seated flange - C/N 065B3255

Gross weight

75.2 Kilogram

Net weight

65 Kilogram

Volume

191.52 Liter

EAN

5702421510988

Type

VF 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VF 2 PN16 150/320 2-way seated flange

Diameter [mm]

150 mm

Differential pressure range [bar] [Max]

1.5 bar

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Kvs values [m³/h]

320 m³/h

Leakage through port max. [% Kvs]

0.05

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

200 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Stroke [mm]

40 mm

Stuffing box sealing material

PFTE

Valve body material

Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)

Valve cone material

GGG 40

Valve stem material

Stainless steel
