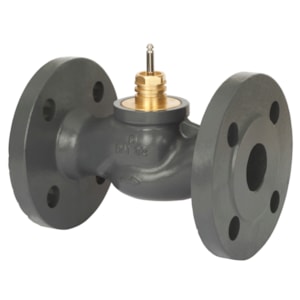

VAN DANFOSS VF 2 PN16 20/6,3 2-way seated flange - C/N 065Z0276

Gross weight

2.925 Kilogram

Net weight

2.652 Kilogram

Volume

7.144 Liter

EAN

5710104007601

Type

VF 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VF 2 PN16 20/6,3 2-way seated flange

Diameter [mm]

20 mm

Differential pressure range [bar] [Max]

4 bar

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Kvs values [m³/h]

6.3 m³/h

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Stroke [mm]

10 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Brass

Valve stem material

Stainless steel
