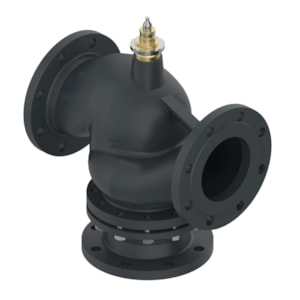

VAN DANFOSS VF 3 PN16 150/320 3-way seated flange - C/N 065B3150

Gross weight

90.5 Kilogram

Net weight

90.5 Kilogram

Volume

196.08 Liter

EAN

5702421509654

Type

VF 3

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Closing differential pressure (diverting) [bar] [Max]

0.6 bar

Closing differential pressure (mixing) [bar] [Max]

1.5 bar

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VF 3 PN16 150/320 3-way seated flange

Diameter [mm]

150 mm

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Function

Mixing valve

Kvs values [m³/h]

320 m³/h

Leakage through port max. [% Kvs]

0.05

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

200 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Number of ports

3

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

aee43d66-523a-47df-9250-578f405f6feb

SCIP dossier product name

VF 3 PN16 150/320 3-WAY SEATED FLANGE

Stroke [mm]

40 mm

Stuffing box sealing material

PFTE

Valve body material

Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)

Valve cone material

GGG 40

Valve stem material

Stainless steel
