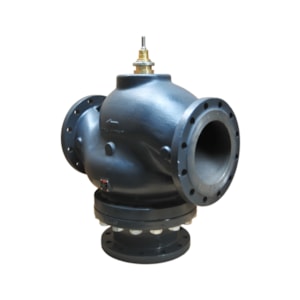

VAN DANFOSS VF3 PN16 300/1250 3-way seated flange - C/N 065B4300

Gross weight

655 Kilogram

Net weight

507 Kilogram

Volume

696 Liter

EAN

5710104508610

Type

VF 3

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.45

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Control ratio

50:1

Description

VF3 PN16 300/1250 3-way seated flange

Diameter [mm]

300 mm

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Function

Mixing valve

Kvs values [m³/h]

1350 m³/h

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

3

Permissible media

District heating/cooling circulation water

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

bc60a1f4-fe0c-4ec8-9e0a-9c8316b7044c

SCIP dossier product name

VF3 DN200-300

Stroke [mm]

73 mm

Valve body material

Grey cast iron (EN-GJL-250)

Valve cone material

Stainless steel
