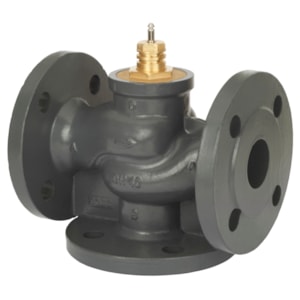

VAN DANFOSS VF 3 PN16 40/25 3-way seated flange - C/N 065Z0259

Gross weight

9.744 Kilogram

Net weight

9.432 Kilogram

Volume

11.217 Liter

EAN

5710104007519

Type

VF 3

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Closing differential pressure (diverting) [bar] [Max]

1 bar

Closing differential pressure (mixing) [bar] [Max]

4 bar

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VF 3 PN16 40/25 3-way seated flange

Diameter [mm]

40 mm

EU RoHS compliance

Out of scope

Flow characteristic

Equal percentage

Function

Mixing valve

Function 2

Pressure relief

Kvs values [m³/h]

25 m³/h

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

3

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

0caf285d-e662-4ceb-825a-b7525ba011bd

SCIP dossier product name

VF 3 PN16 3-way seated flange

Stroke [mm]

15 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Brass

Valve stem material

Stainless steel
