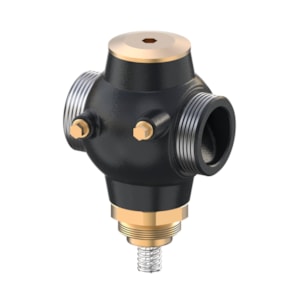

VAN DANFOSS VGU, PN 25, DN 40, 16 m³/h, G 2 A - C/N 065B0795

Mã sản phẩm: 065B0795

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VGU, PN 25, DN 40, 16 m³/h, G 2 A - C/N 065B0795

Product details

Application	Cooling
Cavitation factor	0.6
China RoHS compliance	Out of scope
Connection size	G 2 A
Connection standard	ISO 228/1
Connection types	External Thread
Contains batteries	No
Description	VGU PN25 40/16 2-way thread flow/ret
Diameter [mm]	40 mm
Differential pressure range [bar] [Max]	16 bar
EU RoHS compliance	Out of scope
Flow characteristic	Approx. linear
Function	Control valve
Kvs values [m³/h]	16 m³/h
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	150 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Free
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	16
Pressure class	PN 25
Pressure nominal [bar]	25 bar
Pressure relieve system	Piston
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Sealing material	EPDM
Spindle position	Normally closed
Stroke [mm]	5 mm
Valve body material	Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
Valve cone material	DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material	Stainless steel, mat. No. 1.4571
Valve size	DN 40
