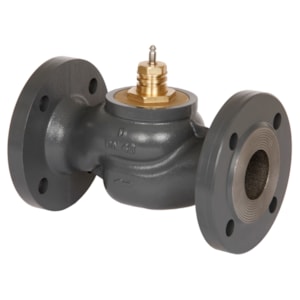

VAN DANFOSS VL2 PN6 DN32/16 flange - C/N 065Z0378

Gross weight

4.376 Kilogram

Net weight

4.376 Kilogram

Volume

6.879 Liter

EAN

5710104009308

Type

VL 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VL2 PN6 DN32/16 flange

Diameter [mm]

32 mm

Differential pressure range [bar] [Max]

4 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Kvs values [m³/h]

16 m³/h

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

2

Permissible media

District heating/cooling circulation water

Pressure nominal [bar]

6 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Stroke [mm]

15 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Brass

Valve stem material

Stainless steel
