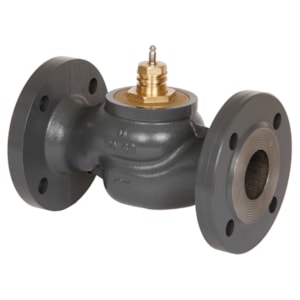

VAN DANFOSS VL 2 PN6 100/145 2-way seated flange - C/N 065Z3426

Gross weight

43.4 Kilogram

Net weight

43.4 Kilogram

Volume

91.2 Liter

EAN

5702421512364

Type

VL 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VL 2 PN6 100/145 2-way seated flange

Diameter [mm]

100 mm

Differential pressure range [bar] [Max]

1 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Kvs values [m³/h]

145 m³/h

Leakage through port max. [% Kvs]

0.05

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Number of ports

2

Permissible media

District heating/cooling circulation water

Pressure nominal [bar]

6 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Stroke [mm]

30 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Red bronze CuSn5Zn5Pb5 (Rg 5)

Valve stem material

Stainless steel
