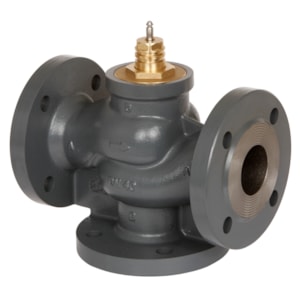

VAN DANFOSS VL3 PN6 DN50/40 flange - C/N 065Z0360

Gross weight

10.322 Kilogram

Net weight

10.322 Kilogram

Volume

11.312 Liter

EAN

5710104009209

Type

VL 3

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Closing differential pressure (diverting) [bar] [Max]

1 bar

Closing differential pressure (mixing) [bar] [Max]

4 bar

Connection types

Flange

Contains batteries

No

Control ratio

100:1

Description

VL3 PN6 DN50/40 flange

Diameter [mm]

50 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Function

Mixing valve

Function 2

Pressure relief

Kvs values [m³/h]

40 m³/h

Leakage through port (B-AB) max. [% Kvs]

1.0

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

120 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

3

Permissible media

District heating/cooling circulation water

Pressure nominal [bar]

6 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

2a201d49-60de-4d04-a5d4-28201624342c

SCIP dossier product name

VL3 PN6 flange

Stroke [mm]

15 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Brass

Valve stem material

Stainless steel
