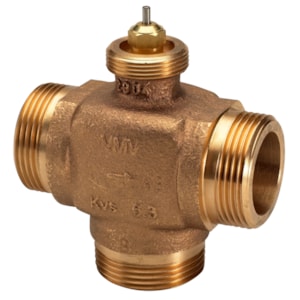

VAN DANFOSS VMV M30, PN 16, DN 15, 2.5 m³/h, G 3/4 A, M30 - C/N 065F6015

Mã sản phẩm: 065F6015

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VMV M30, PN 16, DN 15, 2.5 m³/h, G 3/4 A, M30 - C/N 065F6015

Product details

Application	Heating and cooling
Cavitation factor	0.5
China RoHS compliance	Out of scope
Closing differential pressure (diverting) [bar] [Max]	0.6 bar
Closing differential pressure (mixing) [bar] [Max]	0.6 bar
Connection size	G 3/4 A
Connection type to valve	M30
Connection types	External Thread
Contains batteries	No
Control ratio	1:30
Description	VMV PN16 15/2,5 3-way ext. thr M30 neck
Diameter [mm]	15 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Approx. linear
Function	Mixing valve
Function 2	Diverting valve
Kvs values [m³/h]	2.5 m³/h
Leakage bypass port max. [% Kvs]	0.1 %
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	120 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 30%
Mounting version	Free
Number of ports	3
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure class	PN 16
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Spindle material	Stainless steel
Spindle position	B-AB (Normal open)
Stroke [mm]	2 mm
Valve body material	Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material	EPDM
Valve seat material	Red bronze, mat. No. 2.1096.1 (RG5)
Valve size	DN 15
