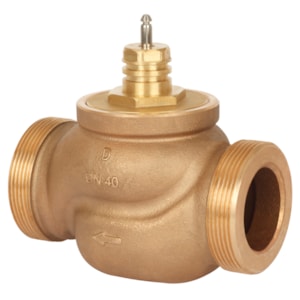

VAN DANFOSS VRB 2 PN16 32/16 2-way seated ext. thr - C/N 065Z0178

Gross weight

1.72 Kilogram

Net weight

1.71 Kilogram

Volume

3.252 Liter

EAN

5702421558942

Type

VRB 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

Chilled water

Cavitation factor

0.4

China RoHS compliance

Out of scope

Connection size

G 2

Connection types

External Thread

Contains batteries

No

Control ratio

100:1

Description

VRB 2 PN16 32/16 2-way seated ext. thr

Diameter [mm]

32 mm

Differential pressure range [bar] [Max]

4 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Kvs values [m³/h]

16 m³/h

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b5a6de68-26c1-410d-8d19-61f492d62e43

SCIP dossier product name

VRB 2 PN16 DN25-32

Stroke [mm]

15 mm

Stuffing box sealing material

EPDM

Valve body material

Red bronze, mat. No. 2.1096.1 (RG5)

Valve cone material

Brass

Valve stem material

Stainless steel
