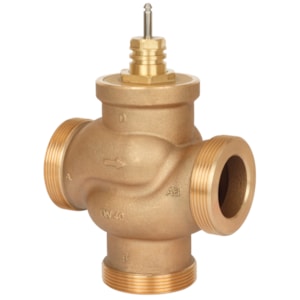

VAN DANFOSS VRB 3 PN16 25/10 3-way seated ext. thr - C/N 065Z0157

Gross weight

1.364 Kilogram

Net weight

1.364 Kilogram

Volume

1.522 Liter

EAN

5702421559123

Type

VRB 3

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

Chilled water

Cavitation factor

0.4

China RoHS compliance

Out of scope

Closing differential pressure (diverting) [bar] [Max]

1 bar

Closing differential pressure (mixing) [bar] [Max]

4 bar

Connection size

G 1 1/2

Connection types

External Thread

Contains batteries

No

Control ratio

100:1

Description

VRB 3 PN16 25/10 3-way seated ext. thr

Diameter [mm]

25 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Function

Mixing valve

Kvs values [m³/h]

10 m³/h

Leakage through port (B-AB) max. [% Kvs]

1.0

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

3

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

5dc33ca0-f2ad-4ee3-b16a-6f2faae76073

SCIP dossier product name

VRB 3 PN16 25/10 3-way seated ext. thr

Stroke [mm]

15 mm

Stuffing box sealing material

EPDM

Valve body material

Red bronze, mat. No. 2.1096.1 (RG5)

Valve cone material

Brass

Valve stem material

Stainless steel
