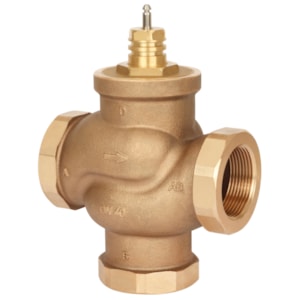

VAN DANFOSS VRB 3 PN16 32/16 3-way seated int. thr - C/N 065Z0218

Mã sản phẩm: 065Z0218

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VRB 3 PN16 32/16 3-way seated int. thr - C/N 065Z0218

Product details

Application	Heating and cooling
Application alternative VSP	Chilled water
Cavitation factor	0.4
China RoHS compliance	Out of scope
Closing differential pressure (diverting) [bar] [Max]	1 bar
Closing differential pressure (mixing) [bar] [Max]	4 bar
Connection size	Rp 1 1/4Rp 1
Connection types	Internal thread
Contains batteries	No
Control ratio	100:1
Description	VRB 3 PN16 32/16 3-way seated int. thr
Diameter [mm]	32 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Equal percentage
Function	Mixing valve
Kvs values [m³/h]	16 m³/h
Leakage through port (B-AB) max. [% Kvs]	1.0
Leakage through port max. [% Kvs]	bubble tight design
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	130 °C
Media temperature [°C] [Min]	-10 °C
Medium alternative	Glycolic water up to 50%
Mounting version	Flow
Number of ports	3
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	329dd143-5d9b-4434-b641-05921d438315
SCIP dossier product name	VRB 3 PN16 DN25-32
Stroke [mm]	15 mm
Stuffing box sealing material	EPDM
Valve body material	Red bronze, mat. No. 2.1096.1 (RG5)
Valve cone material	Brass
Valve stem material	Stainless steel
