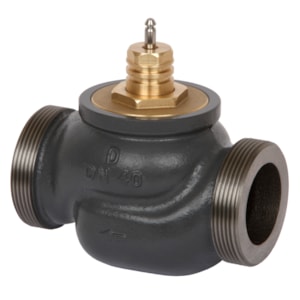

VAN DANFOSS VRG2 PN16 DN15/1,6 ext.thread - C/N 065Z0133

Gross weight

0.755 Kilogram

Net weight

0.682 Kilogram

Volume

1.496 Liter

EAN

5702421559642

Type

VRG 2

Product group

Other valves

Application

Heating and cooling

Application alternative VSP

District heating

Cavitation factor

0.4

China RoHS compliance

Out of scope

Connection size

G 1

Connection types

External Thread

Contains batteries

No

Control ratio

50:1

Description

VRG2 PN16 DN15/1,6 ext.thread

Diameter [mm]

15 mm

Differential pressure range [bar] [Max]

4 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Equal percentage

Kvs values [m³/h]

1.6 m³/h

Leakage through port (B-AB) max. [% Kvs]

1.0

Leakage through port max. [% Kvs]

bubble tight design

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

-10 °C

Medium alternative

Glycolic water up to 50%

Mounting version

Flow

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure nominal [bar]

16 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Stroke [mm]

10 mm

Stuffing box sealing material

EPDM

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Valve cone material

Brass

Valve stem material

Stainless steel
