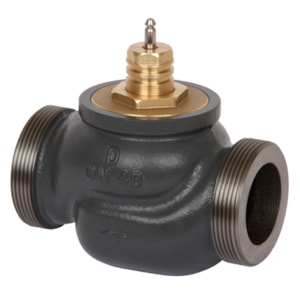

VAN DANFOSS VRG2 PN16 DN50/40 ext.thread - C/N 065Z0140

Mã sản phẩm: 065Z0140

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VRG2 PN16 DN50/40 ext.thread - C/N 065Z0140

Product details

Application	Heating and cooling
Application alternative VSP	District heating
Cavitation factor	0.4
China RoHS compliance	Out of scope
Connection size	G 2 3/4
Connection types	External Thread
Contains batteries	No
Control ratio	100:1
Description	VRG2 PN16 DN50/40 ext.thread
Diameter [mm]	50 mm
Differential pressure range [bar] [Max]	4 bar
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Equal percentage
Function	Pressure relief
Kvs values [m³/h]	40 m³/h
Leakage through port (B-AB) max. [% Kvs]	1.0
Leakage through port max. [% Kvs]	bubble tight design
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	130 °C
Media temperature [°C] [Min]	-10 °C
Medium alternative	Glycolic water up to 50%
Mounting version	Flow
Number of ports	2
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	a0440f97-59d4-4580-b7e0-6d00493ba958
SCIP dossier product name	VRG2 PN16 DNxx-xx ext.thread
Stroke [mm]	15 mm
Stuffing box sealing material	EPDM
Valve body material	Grey cast iron EN-GJL-250 (GG-25)
Valve cone material	Brass
Valve stem material	Stainless steel
