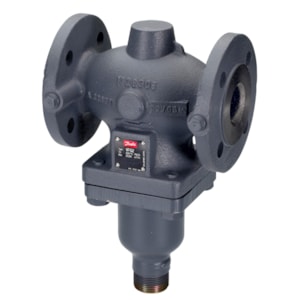

VAN DANFOSS VFGS 2, PN 25, DN 25, 8 m³/h, Flange - C/N 065B2445

Gross weight

9.454 Kilogram

Net weight

9.376 Kilogram

Volume

11.638 Liter

EAN

5702421803622

Type

VFGS 2

Product group

Pressure flow controllers

Application

Steam

Cavitation factor

0.6

China RoHS compliance

Out of scope

Connection types

Flange

Contains batteries

No

Description

VFGS2 PN25 25/8 2-way flange flow/ret

Diameter [mm]

25 mm

Differential pressure range [bar] [Max]

20 bar

EU RoHS compliance

Out of scope

Flow characteristic

Linear optimized

Function

Pressure relief

Kvs values [m³/h]

8 m³/h

Leakage through port max. [% Kvs]

0.03

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

350 °C

Media temperature [°C] [Min]

2 °C

Medium alternative

Circulation water

Mounting version

Free

Number of ports

2

Permissible media

Steam

Pressure class

PN 25

Pressure nominal [bar]

25 bar

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Spindle position

Normally open

Stroke [mm]

6 mm

Valve body material

Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)

Valve cone material

Stainless steel, mat. No. 1.4021

Valve seat material

Stainless steel, mat. No. 1.4021

Valve size

DN 25
