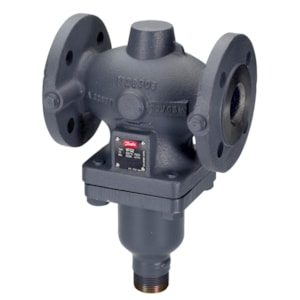

VAN DANFOSS VFGS 2, PN 40, DN 32, 16 m³/h, Flange - C/N 065B2456

Mã sản phẩm: 065B2456

Thương hiệu: Danfoss

Giá thị trường: 2 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 2 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VFGS 2, PN 40, DN 32, 16 m³/h, Flange - C/N 065B2456

Product details

Application	Steam
Cavitation factor	0.55
China RoHS compliance	Out of scope
Connection types	Flange
Contains batteries	No
Description	VFGS2 PN40 32/16 2-way flange flow/ret
Diameter [mm]	32 mm
Differential pressure range [bar] [Max]	20 bar
EU RoHS compliance	Out of scope
Flow characteristic	Linear optimized
Function	Pressure relief
Kvs values [m³/h]	16 m³/h
Leakage through port max. [% Kvs]	0.03
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	350 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Circulation water
Mounting version	Free
Number of ports	2
Permissible media	Steam
Pressure class	PN 40
Pressure nominal [bar]	40 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Spindle position	Normally open
Stroke [mm]	9 mm
Valve body material	Cast steel GP240GH (GS-C 25)
Valve cone material	Stainless steel, mat. No. 1.4021
Valve seat material	Stainless steel, mat. No. 1.4021
Valve size	DN 32
