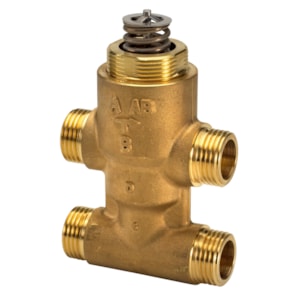

VAN DANFOSS VZ 4 PN16 15/0,25 4-way seated flat end - C/N 065Z5510

Mã sản phẩm: 065Z5510

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS VZ 4 PN16 15/0,25 4-way seated flat end - C/N 065Z5510

Product details

Application	Heating and cooling
Application alternative VSP	Hot water
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.3
Closing differential pressure (diverting) [bar] [Max]	1 bar
Closing differential pressure (mixing) [bar] [Max]	3.5 bar
Connection size	G 1/2
Connection types	External Thread
Contains batteries	No
Control ratio	50:1
Description	VZ 4 PN16 15/0,25 4-way seated flat end
Diameter [mm]	15 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow characteristic	Logarithmic
Function	Mixing valve
Kvs value (B-AB) [m³/h]	0.25 m³/h
Kvs values [m³/h]	0.25 m³/h
Leakage through port (B-AB) max. [% Kvs]	1.0
Leakage through port max. [% Kvs]	0.05
Media pH [Max]	10
Media pH [Min]	7
Media temperature [°C] [Max]	120 °C
Media temperature [°C] [Min]	2 °C
Medium alternative	Glycolic water up to 50%
Mounting version	Free
Number of ports	4
Permissible media	District heating/cooling circulation water
PN alternative VSP	10
Pressure nominal [bar]	16 bar
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Spindle position	A-AB: Normally closed
Stroke [mm]	5.5 mm
Stuffing box sealing material	EPDM
Valve body material	DZR brass CuZn36Pb2AS (CW 602N)
Valve cone material	DZR brass CuZn36Pb2AS (CW 602N)
Valve seat material	DZR brass CuZn36Pb2AS (CW 602N)
Valve stem material	Stainless steel
