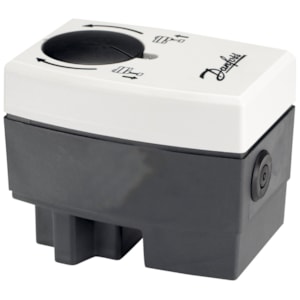

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 13, Supply voltage [V] AC: 24 - C/N 082G3006

Gross weight

0.872 Kilogram

Net weight

0.872 Kilogram

Volume

1.694 Liter

EAN

5702421507568

Type

AME 13

Product group

Electrical actuators

Actuator speed [s/mm]

14 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

District Heating

China RoHS compliance

Out of scope

Closing force [N]

300 N

Contains batteries

No

Control input signal Y [mA]

0(4) - 20 mA

Control input signal Y [mA], impedance [Ohm]

500 Ohm

Control input signal Y [V]

0(2) - 10 V

Control input signal Y [V], impedance [kOhm]

24 kOhm

Control signal type

Modulating/3-point

Description

AME 13 24V 14s/mm 5mm 300N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Grade of enclosure

IP54

Manual operation

Yes

Position feedback

yes

Power consumption [W]

9 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

Yes

SCIP dossier no.

ebea89b0-e049-4151-bb9c-338b14868406

SCIP dossier product name

AMV(E) 10/13

Speed type

Standard

Spring down (return)

Yes

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

5 mm

Supply voltage [V] AC

24 V

Turn time per 90° [s]

0 "
