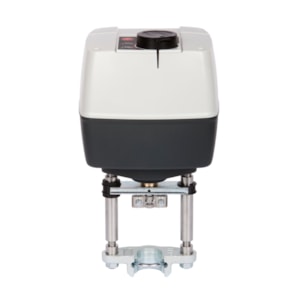

THIẾT BỊ TRUYỀN ĐỘNG ĐIỆN DANFOSS AME 659 SD, Supply voltage [V] AC: 230 - C/N 082G3455

Gross weight

9.778 Kilogram

Net weight

9.778 Kilogram

Volume

18.296 Liter

EAN

5710104030470

Type

AME 659 SD

Product group

Electrical actuators

Actuator speed [s/mm]

2 s/mm; 6 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

HD District Heating

China RoHS compliance

Out of scope

Closing force [N]

2000 N

Contains batteries

No

Control input signal Y [mA]

0(4) - 20 mA

Control input signal Y [mA], impedance [Ohm]

500 Ohm

Control input signal Y [V]

0(2) - 10 V

Control input signal Y [V], impedance [kOhm]

40 kOhm

Control signal type

Modulating/3-point

Description

AME 659 SD 110-230V 2-6s/mm 50mm 2000N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP54

Manual operation

No

Position feedback

yes

Power consumption [W]

38 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

Yes

SCIP dossier no.

1383b0ac-9597-4acd-8949-becd4eb06779

SCIP dossier product name

AMV(E) 65x/685/855_1

Speed type

Standard

Spring down (return)

Yes

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

50 mm

Supply voltage [V] AC

230 V
