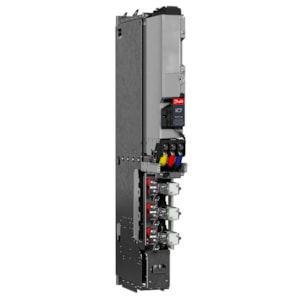

MÁY BIẾN TẦN DANFOSS IC7-60SL3A07-380AE00F3+AEZ1+AJFX+ANN1+AONH+BAMT+BEXX+DAMA+EGIN+EHEN - C/N 137G1048

Gross weight

172 Kilogram

Net weight

138 Kilogram

Volume

391 Liter

EAN

5715253269696

Product series

+DAMA

iC7-Marine

Product group

IC7-60

iC7-60

Product category

SL

System module, liquid-cooled

Product type

3A

3~, regenerative, AFE

Mains voltage

07

525-690 V AC / 640-1100 V DC

Current rating

-380A

380 A

Power rating

XXX

Not relevant

Protection rating

E00

IP00/Open Type

EMC category

F3

C3 category

Integration unit

+AEZ1

Standard, with LC filter

Mains input device

+AJFX

AC fuses

DC fuses and devices

+AKXX

None

Cooling circuit connector type

+ANN1

Push-in connection

Cooling circuit hose length

+AONH

None

Marine construction

+AFXX

None

Extra environmental protection

+AGCX

Coated boards

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDXX

None

Functional safety

+BEXX

None, not upgradable

Control panel

+BFXX

None

Control panel mounting type

+BGXX

None

Control panel cable length

+BHXX

None

Control unit cable length

+BKXX

None

StarCoupler board cable length

+BLXX

None

Option slot A

+CAXX

None, without mounting p

Option slot B

+CBXX

None, without mounting plate

Option slot C

+CCXX

None, without mounting plate

Option slot D

+CDXX

None, without mounting plate

Option slot E

+CEXX

None, without mounting plate

Option slot F

+CFXX

None, without mounting plate

Option slot G

+CGXX

None, without mounting plate

Option slot H

+CHXX

None, without mounting plate

Option slot I

+CIXX

None, without mounting plate

Option slot J

+CJXX

None, without mounting plate

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGIN

Installation guide

Documentation language

+EHEN

English

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

AR10L

AR10L

Modelcode01

IC7-60SL3A07-380AE00F3

Modelcode02

+AEZ1+AJFX+ANN1

Modelcode03

+AONH+BAMT+BEXX

Modelcode06

+DAMA

Modelcode08

+EGIN+EHEN

Main unit Width

140mm/5.5in

140mm/5.5in

Main unit Height

1295mm/51in

1295mm/51in

Main unit Depth

566mm/22.3in

566mm/22.3in

Calculated Gross Weight [kg]

172

Calculated Net Weight [kg]

138

ECCN US

3A999.a

3A999.a

AC voltage

3X525-690VAC

3X525-690VAC

Apparent power

/404kVA(600VAC)

/404kVA(600VAC)

Apparent power

464kVA(690VAC)

464kVA(690VAC)

Cooling type

Liquid Cooled

Liquid Cooled

DC Bus current

445A(1025VDC)

445A(1025VDC)

DC Bus voltage

640-1100VDC

640-1100VDC

DC power

455kW(1025VDC)

455kW(1025VDC)

Liquid temp. High Overload

38°C/100°F

38°C/100°F

Liquid temp. Low Overload

38°C/100°F

38°C/100°F

Liquid temp. Nominal load

38°C/100°F

38°C/100°F

Nominal AC current

388A

388A

Power factor

cos φ = 1

cos φ = 1

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, liquid-cooled

System module, liquid-cooled

Product Type - DrivesSymbol

3 phase regenerative, AFE

3 phase regenerative, AFE

Salescode part 1

IC7-60SL3A07-380AE00F3

IC7-60SL3A07-380AE00F3

Salescode part 2

+AEZ1+AJFX+ANN1

+AEZ1+AJFX+ANN1

Salescode part 3

+AONH+BAMT+BEXX

+AONH+BAMT+BEXX

Salescode part 4

+DAMA

+DAMA

Salescode part 5

+EGIN+EHEN

+EGIN+EHEN

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F
