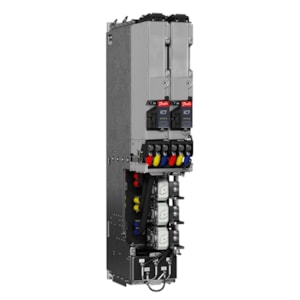

MÁY BIẾN TẦN DANFOSS IC7-60SL3AB5-2000E00F4+AEZ3+AJFX+AKFX+ANN1+AONH+BAMT+BDC1+BEXX+BF20+BGK1+BH25+BK - C/N 137L2450

Gross weight

987 Kilogram

Net weight

840 Kilogram

Volume

2013 Liter

EAN

5715253495217

Product series

+DAMA

iC7-Marine

Product group

IC7-60

iC7-60

Product category

SL

System module, liquid-cooled

Product type

3A

3~, regenerative, AFE

Mains voltage

B5

380-500 V AC / 425-830 V DC

Current rating

-2000

2000 A

Power rating

XXX

Not relevant

Protection rating

E00

IP00/Open Type

EMC category

F4

C4 category

Integration unit

+AEZ3

Standard, with LCL filter

Mains input device

+AJFX

AC fuses

DC fuses and devices

+AKFX

DC bus fuses

Cooling circuit connector type

+ANN1

Push-in connection

Cooling circuit hose length

+AONH

None

Marine construction

+AFXX

None

Extra environmental protection

+AGCX

Coated boards

Communication interface, X1/X2

+BAMT

Modbus TCP OS7MT

Communication interface, X0

+BBEL

Ethernet port, no protocol

Standard I/O

+BDC1

I/O and Relay Option OC7C1

Functional safety

+BEXX

None, not upgradable

Control panel

+BF20

Control Panel 2.8 OPX20

Control panel mounting type

+BGK1

Flush mount

Control panel cable length

+BH25

2.5 m (8 ft)

Control unit cable length

+BK25

2.5 m (8 ft), Fiber

StarCoupler board cable length

+BL25

2.5 m (8 ft), Fiber

Option slot A

+CAXX

None, without mounting p

Option slot B

+CBXX

None, without mounting plate

Option slot C

+CCXX

None, without mounting plate

Option slot D

+CDXX

None, without mounting plate

Option slot E

+CEXX

None, without mounting plate

Option slot F

+CFXX

None, without mounting plate

Option slot G

+CGXX

None, without mounting plate

Option slot H

+CHXX

None, without mounting plate

Option slot I

+CIXX

None, without mounting plate

Option slot J

+CJXX

None, without mounting plate

Language package

+EL01

Global

Customer specific application

+DBXX

None

Additional drive features 1

+DD1X

None

Additional drive features 2

+DE2X

None

Additional drive features 3

+DF3X

None

Additional drive features 4

+DG4X

None

Additional drive features 5

+DH5X

None

High speed enabled

+DI6X

No

Customization file package ID

+EAXXXXXX

No customization

Product software ID

+ECXXX

Latest released version

Technical documentation

+EGIN

Installation guide

Documentation language

+EHEN

English

Customer-specific label

+EJXX

None

Shipping package

+TACB

Cardboard box package

Product specific marine cert.

+VBXX

None

Frame designation

3XAR12L

3xAR12L

Modelcode01

IC7-60SL3AB5-2000E00F4

Modelcode02

+AEZ3+AJFX+AKFX+ANN1

Modelcode03

+AONH+BAMT+BDC1+BEXX+BF20

Modelcode04

+BGK1+BH25+BK25+BL25

Modelcode06

+DAMA

Modelcode08

+EGIN+EHEN

Main unit Width

3x235mm/9.3in+2x309mm/12.2in

3x235mm/9.3in+2x309mm/12.2in

Main unit Height

1295mm/51in+607mm/23.9in

1295mm/51in+607mm/23.9in

Main unit Depth

566mm/22.3in+308.5mm/12.15in

566mm/22.3in+308.5mm/12.15in

Calculated Gross Weight [kg]

987

Calculated Net Weight [kg]

840

ECCN US

3A999.a

3A999.a

AC voltage

3X380-500VAC

3X380-500VAC

Apparent power

1769kVA(500VAC)

1769kVA(500VAC)

Cooling type

Liquid Cooled

Liquid Cooled

DC Bus current

2335A(742VDC)

2335A(742VDC)

DC Bus voltage

425-830VDC

425-830VDC

DC power

1733kW(742VDC)

1733kW(742VDC)

Liquid temp. High Overload

45°C/113°F

45°C/113°F

Liquid temp. Low Overload

45°C/113°F

45°C/113°F

Liquid temp. Nominal load

45°C/113°F

45°C/113°F

Nominal AC current

2042A(500VAC)

2042A(500VAC)

Power factor

cos φ = 1

cos φ = 1

Product Catalog

NO_VIEW

NO VIEW

Product Category -DrivesSymbol

System module, liquid-cooled

System module, liquid-cooled

Product Type - DrivesSymbol

3 phase regenerative, AFE

3 phase regenerative, AFE

Salescode part 1

IC7-60SL3AB5-2000E00F4

IC7-60SL3AB5-2000E00F4

Salescode part 2

+AEZ3+AJFX+AKFX+ANN1

+AEZ3+AJFX+AKFX+ANN1

Salescode part 3

+AONH+BAMT+BDC1+BEXX+BF20

+AONH+BAMT+BDC1+BEXX+BF20

Salescode part 4

+BGK1+BH25+BK25+BL25

+BGK1+BH25+BK25+BL25

Salescode part 5

+DAMA

+DAMA

Salescode part 6

+EGIN+EHEN

+EGIN+EHEN

Storage temperature

-40...70°C/-40...158°F

-40...70°C/-40...158°F
