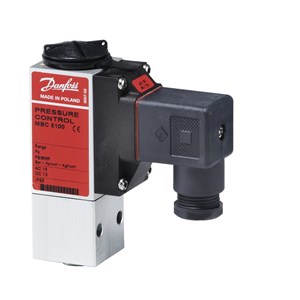

CÔNG TẮC ÁP SUẤT DANFOSS MBC 5100 16-160 BAR C/N 061B510066

Gross weight

0.31 kg

Net weight

0.26 kg

EAN

5702423212743

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ABS
BV
CCC
CCS
CE
DNV
EAC
GL
KRS
LR
NKK
RINA
RMRS
CMIM

Burst pressure [bar]

1200 bar

Contact function

SPDT

Contact rating

AC15=0.5 A, 250 V
DC13=12 W, 125 V

Diff.@Max. range setting [bar]

30 bar

Diff.@Min. range setting [bar]

15 bar

Electrical conn. Male/Female

Female

Electrical connection

DIN-plug

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Electrical spec. standard

EN 60947-5

Enclosure rating IP

IP65

Max. test pressure [bar] Pe

600 bar

Max. test pressure [psig]

8702 psig

Max. Working Pressure [bar]

600 bar

Max. Working Pressure [psig]

8700 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure range category

High pressure

Pressure sensing element

Piston

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

32 pc

Regulation range [bar] Pe [Max]

160 bar

Regulation range [bar] Pe [Min]

16 bar

Regulation range [MPa] Pe [Max]

16 MPa

Regulation range [MPa] Pe [Min]

1.6 MPa

Serviceable

No

Specification key

5251-1CB04

Type

MBC 5100
