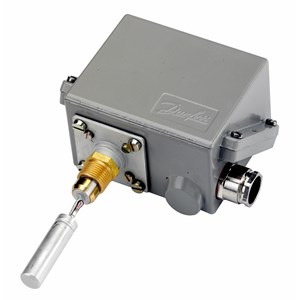

CÔNG TẮC ÁP SUẤT DANFOSS KPS79 - C/N 060L313766

Gross weight

0.93 kg

Net weight

0.93 kg

EAN

5702423147892

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ABS
BV
CCC
CCS
CE
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK
UL
UKCA

Charge type

Adsorption

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
for gold 1…30mA, 5...30V

Diff. @ Min. range setting [K] [Max]

16 K

Diff. @ Min. range setting [K] [Min]

4 K

Diff. @ Min. range setting[°C] [Max]

16 °C

Diff. @ Min. range setting[°C] [Min]

4 °C

Differential type

Adjustable

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Equipment

Max. sensor temperature [°C]

200 °C

Max. sensor temperature [°F]

392 °F

Packing format

Multi pack

Product accessories

Switches accessories

Product description

Thermostat

Product family name

KP thermostat

Product group

Switches and thermostats

Product name

Thermostat

Quantity per packing format

10 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Reset function

Auto

Sensor pocket length min. [in]

6 9/16 in

Sensor pocket length min. [mm]

160 mm

Sensor size (Ø x L) [in]

1/2 x 2 1/2 in

Sensor size (Ø x L) [mm]

13 x 63 mm

Sensor type

Rigid Sensor

Serviceable

No

Temperature range [°C] [Max]

100 °C

Temperature range [°C] [Min]

50 °C

Temperature range [°F] [Max]

212 °F

Temperature range [°F] [Min]

122 °F

Type

KPS79

UL approval file name

E73170
