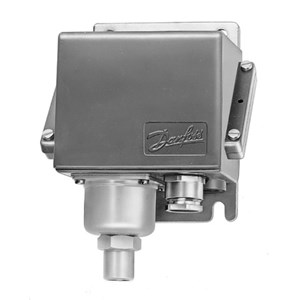

CÔNG TẮC ÁP SUẤT DANFOSS KPS33 0-3.5BAR - C/N 060-310466

Mã sản phẩm: 060-310466
Thương hiệu: Danfoss
Giá thị trường: 1 đ
Tiết kiệm: 0 đ (0%)
Giá bán: 1 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TẮC ÁP SUẤT DANFOSS KPS33 0-3.5BAR - C/N 060-310466

Regulation range [bar] Pe: 0.00 - 3.50, Differential [bar]: 0.20, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP67, Max. Working Pressure [bar]: 10.0



Gross weight

1.07 kg

Net weight

0.98 kg

EAN

5702423146819



Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [Max]

70 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

158 °F

Ambient temperature range [°F] [Min]

-40 °F

Approval

ABS
BV
CCC
CCS
CE
DNV
EAC
GL
KRS
LLC CDC EURO-TYSK
LR
LVD
NKK
RINA
RMRS
RoHS
RoHS China
TYSK
UL
UKCA

Contact function

SPDT gold

Contact rating

AC15=4 A, 440 V
AC1=10 A, 440 V
AC3=6 A, 440 V
DC13=12 W, 220 V
LR max. 50 A
for gold 1…30 mA, 5...30 V

Differential [bar]

0.2 bar

Differential [psi]

3 psi

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

EN 60947 electrical properties

Pollution degree: 3
Rated impulse voltage: 4 kV

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP67

Equipment

Identical product

060-410166

Max. test pressure [bar] Pe

10 bar

Max. test pressure [psig]

145 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Packing format

Multi pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure range category

Low pressure

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product name

Pressure switch

Quantity per packing format

8 pc

REACH Candidate List substances >0.1%

Lead (CAS no. 7439-92-1)

Regulation range [bar] Pe [Max]

3.5 bar

Regulation range [bar] Pe [Min]

0 bar

Regulation range [MPa] Pe [Max]

0.35 MPa

Regulation range [MPa] Pe [Min]

0 MPa

Regulation range [psig] Pe [Max]

51 psig

Regulation range [psig] Pe [Min]

0 psig

Reset function

Auto

Serviceable

No

Type

KPS33

UL approval file name

E73170
