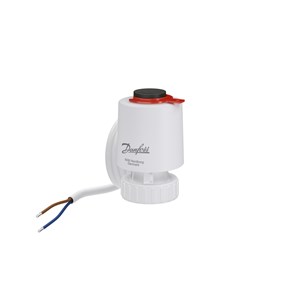

PHỤ TÙNG VAN DANFOSS TWA-Q 230V 5MM - C/N 082F160
TWA-Q, 230V, 5mm, Normally Closed thermal actuator, 1.2m cable
|
Gross weight |
0.18 kg |
|
Net weight |
0.1 kg |
|
EAN |
5702425243066 |
|
Approval standard |
EC EN 60730 |
|
Cable length [m] |
1.2 m |
|
Compatibility with AB-QM size |
DN 10-32 |
|
Control signal type |
On/off and PWM |
|
De-energized position |
Normally closed |
|
Description |
TWA-Q, 230V, 5mm, Normally Closed thermal actuator, 1.2m cable |
|
IP protection class |
IP 54 |
|
Product group |
Thermal actuators |
|
REACH Candidate List substances >0.1% |
Lead |
|
Stroke [mm] |
5 mm |
|
Supply voltage [V] AC |
230 V |
|
Type |
TWA-Q |
