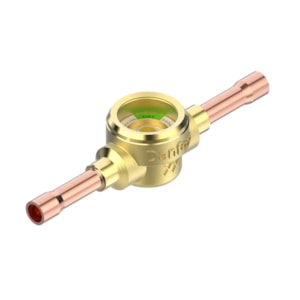

KÍNH XEM GAS DANFOSS SGN 6S - C/N 014-0181

Gross weight

0.104 Kilogram

Net weight

0.089 Kilogram

Volume

0.126 Liter

EAN

5702422104087

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Copper

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R134a: 30 ppm
R22: 30 ppm
R404A: 20 ppm
R407A: 29 ppm
R407C: 30 ppm
R407F: 30 ppm
R448A: 28 ppm
R449A: 29 ppm
R450A: 23 ppm
R452A: 20 ppm
R513A: 22 ppm
R507A: 15 ppm

Green: max moist con@43 °C

R134a: 45 ppm
R22: 50 ppm
R404A: 25 ppm
R407A: 48 ppm
R407C: 60 ppm
R407F: 60 ppm
R448A: 70 ppm
R449A: 53 ppm
R450A: 46 ppm
R452A: 30 ppm
R513A: 22 ppm
R507A: 30 ppm

Identical product

014-0148

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

1/4 in

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

500 psig

Moisture indicator

N indicator

Oil free refrigerants

R134a; R513A

Outlet connection type

Solder, ODF

Outlet size [in]

1/4 in

Packing format

Multi pack

Product accessories

No

Product group

Sight glasses

Product Name Description

Sight glass

Quantity per packing format

25 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R448A
R449A
R450A
R452A
R513A
R507A
R1233zd(E)
R1234yf
R1234ze(E)

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

Type

SGN 6s

UK RoHS compliance

Out of scope

Yellow: min moist con@25 °C

R134a: 100 ppm
R22: 120 ppm
R404A: 70 ppm
R407A: 115 ppm
R407C: 140 ppm
R448A: 110 ppm
R449A: 105 ppm
R450A: 148 ppm
R452A: 79 ppm
R513A: 75 ppm
R407F: 168 ppm
R507A: 60 ppm

Yellow: min moist con@43 °C

R134a: 170 ppm
R404A: 100 ppm
R407C: 225 ppm
R507A: 110 ppm
R22: 200 ppm
R407A: 192 ppm
R407F: 240 ppm
R448A: 227 ppm
R449A: 200 ppm
R450A: 245 ppm
R452A: 143 ppm
R513A: 123 ppm
