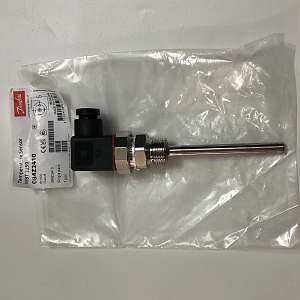

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3250, -50-200oC, Pt 1000 Ohm, L=100mm, G1/2 - C/N 084Z2410

Gross weight

0.155 Kilogram

Net weight

0.151 Kilogram

Volume

0.286 Liter

EAN

5702428950817

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(b), 6(c), 7(a), 7(c)-I

In scope of WEEE and contain batteries

No

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

SCIP dossier no.

1741c763-fa54-4cb9-973c-52e51e4079b9

Sensor elem. resistance [Ohm]

1000

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 3250

Type designation

MBT 3250-0100-100-120

UK RoHS compliance

Out of scope

Wires [pcs]

2 pc
