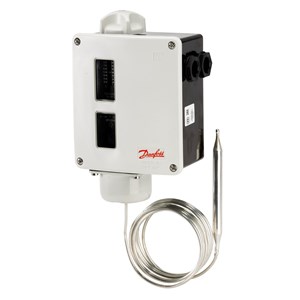

CÔNG TẮC NHIỆT ĐỘ DANFOSS RT14 : -5 - 30 oC, 2000mm, Auto - C/N 017-509966

CHARACTERISTIC

VALUE

TYPE CODE

RT14

WEIGHT

0.862 Kg

AMBIENT TEMP.

-50 - 70 °C

AMBIENT TEMP.

-58 - 158 °F

APPROVAL

CCC, CE, EAC, GL, NKK, RINA, RMRS

CAP. TUBE LENGTH

78 3/4 in

CAP. TUBE LENGTH

2.000 mm

CHARGE TYPE

Adsorption

CONTACT FUNCTION

SPDT

CONTACT RATING

AC1=10 A, 400 V

CONTACT RATING

AC15=3 A, 400 V

CONTACT RATING

AC3=4 A, 400 V

CONTACT RATING

DC13=12 W, 220 V

CONTACT RATING

LR=28 A, 400 V

DIFF. MAX. RANGE SETTING

2,0 - 10,0 °C

DIFF. MIN. RANGE SETTING

2,0 - 8,0 °C

DIFF. TYPE

Adjustable

EAN NO.

5702428004206

ELECTR. CONN. SIZE

2xPg 13.5

ELECTR. SPEC. STANDARD

EN 60947-4/-5

IP66

GLOW LAMP

No

MAX. SENSOR TEMP.

150 °C

MAX. SENSOR TEMP.

302,0 °F

PACK FORMAT

Multi pack

PROD. DESCRIPTION

Temperature Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Thermostat

PACK QTY.

15 PC

RESET

AUTO

SENSOR SIZE (Ø X L)

3/8 x 4 1/4 in

SENSOR SIZE (Ø X L)

9.5 X 110 mm

SENSOR TYPE

Remote Sensor

TEMP. RANGE

-5 - 30 °C

TEMP. RANGE

23 - 86 °F
