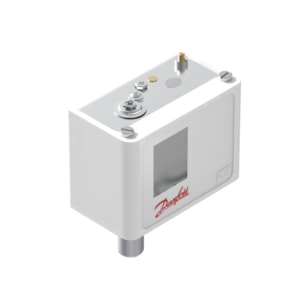

CÔNG TẮC ÁP SUẤT DANFOSS KPI35 - C/N 060-122466

Gross weight

0.33 Kilogram

Net weight

0.313 Kilogram

Volume

0.46 Liter

EAN

5702423146765

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CCC; CE; CMIM ;EAC ; LLC CDC EURO-TYSK ; LVD ; PZH ; RINA ; RoHS China ; c UL us UL873, CS C22.2

CE evaluated

Yes

China RoHS compliance

Out of scope

Contact function

SPDT

Contact rating

AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR=36 A, 240 V; LR=48 A, 120 V

Contain batteries

No

Differential [bar] [max]

2 bar

Differential [bar] [min]

0.5 bar

Differential [psi] [max]

29 psi

Differential [psi] [min]

7 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Out of scope

Identical product

060-121966

In scope of WEEE

Yes

Max. test pressure [bar] Pe

18 bar

Max. test pressure [psig]

261 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

261 psig

Packing format

Industrial pack

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure sensing element

Bellows

Product accessories

Switches accessories

Product description

Pressure Switch

Product group

Switches and thermostats

Product Name Description

Pressure switch

Quantity per packing format

48 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Regulation range

6 inHg - 116 psig

Regulation range [bar] Pe [max]

8 bar

Regulation range [bar] Pe [min]

-0.2 bar

Reset function

Auto

SCIP dossier no.

b1323c86-8856-44cc-b1c6-6849abe37ee4

Serviceable

No

Type

KPI35

UK RoHS compliance

Out of scope

UL approval file name

E31024

UL evaluated

Yes
