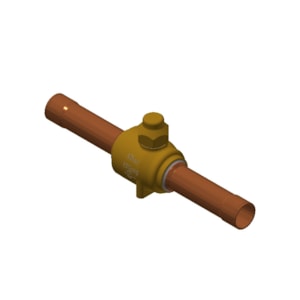

VAN CHẶN DANFOSS GBC 18s - C/N 009L7574

Gross weight

0.43 Kilogram

Net weight

0.373 Kilogram

EAN

5702428515054

Type

GBC 18s

Product group

Shut-off and regulating valves

Product Name Description

Shut-off ball valve

Access port

No

Approval

CE; UKCA; UL

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Copper

Contain batteries

No

Cv value [gal/min]

25.35 gal/min

Direction

Straightway

Equipment

Cap w. wire seal

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

2

Ignition source assessment

Yes

Inlet connection type

Solder, ODF

Inlet size [mm]

18 mm

Kv value [m³/h]

21.93 m³/h

Max. Working Pressure [bar]

45 bar

Max. Working Pressure [psig]

650 psig

Outlet connection type

Solder, ODF

Outlet size [mm]

18 mm

Packing format

Multi pack

PED category

Art. 4, par. 3

Product accessories

BM/GBC valve accessories

Quantity per packing format

25 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R744

SCIP dossier no.

71d1f669-02da-4298-a795-0a47f4b4c821

SCIP dossier product name

CO2 GBC 45 bar V2 without AP

Serviceable

BM/GBC valve spare parts

Temperature range [°C] [max]

100 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

212 °F

Temperature range [°F] [min]

-40 °F

UL approved refrigerants

R744

UL evaluated

Yes
