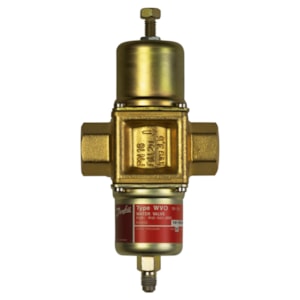

VAN DANFOSS WVO 10, 16 bar - 20 bar, 1.4 m³/h - C/N 003N5207

Gross weight

1.23 Kilogram

Net weight

0.949 Kilogram

Volume

4.082 Liter

EAN

5702422058052

Type

WVO 10

Product group

Water regulating valves

Product Name Description

Pressure operated water valve

Approval

C UL US LISTED; EAC; LLC CDC TYSK; PED; RoHS; RoHS China

Approval file name

REFRIGERANT VALVE 53R0

Body material

Brass

China RoHS compliance

Yes

Connection Internal/External

Internal

Connection size (refrigerant)

1/4 in - 6 mm

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Connection type (refrigerant)

SAE flare

Contain batteries

No

Control pressure range [bar] [max]

20 bar

Control pressure range [bar] [min]

16 bar

Cv value [gal/min]

1.6 gal/min

Differential pressure [bar]

10 bar

Differential pressure [psi]

145 psi

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(b); 6(c)

Kv value [m³/h]

1.4 m³/h

Lubricants compatibility

Oilfree applications

Max. test pressure [bar] Pe

24 bar

Max. test pressure [psig]

350 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Max.test press.(refrig.)[bar]

38 bar

Max.test press.(refrig.)[psig]

551 psig

Media

Fresh water ; Neutral brine

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-25 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-13 °F

MWP (refrigerant) [bar]

25 bar

Oil free refrigerants

R513A

Opening configuration

Opens on rising cond. pressure

Orifice size [mm]

10 mm

Orifice size fraction [in]

2/5 in

Packing format

Multi pack

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R454A
R454C
R455A
R507A
R513A

SCIP dossier no.

fc3470cc-5810-44ef-89ac-d393613841da

SCIP dossier product name

WV Valves

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R507A
R513A

UL evaluated

Yes
