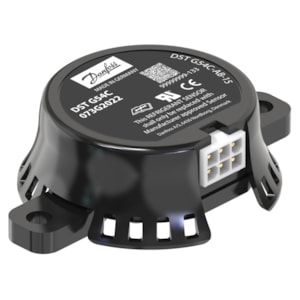

CẢM BIẾN KHÍ DANFOSS DST G54C, R454C - C/N 073G5022

Gross weight

59.85 Gram

Net weight

46 Gram

Volume

0.186 Liter

EAN

5715162988732

Type

DST G54C

Product group

Sensors

Product Name Description

Gas sensor

Alarm reset [LFL hysteresis %]

2,5

Alarm reset Modbus

5 seconds

Alarm reset Relay

5 seconds

Alarm threshold [LFL %]

15

Approval

C UL US UL Recognized; CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Communication configuration

Danfoss Default

Contains batteries

No

Electrical connection

Mini Mate-N-Lok

Electrical connection size

6 pin

Electrical connection standard

EN 60529

Enclosure design

Round Ø6 black

Enclosure rating IP

IP54

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flame rating

UL 94 V-0

Housing material

PA66 25% Glass fiber

Identical product

073G2022

In scope of WEEE

No

International Article Number

5715162988732

Modbus termination

120 Ohm

Mounting interface

2 brackets 180 dgr

Operating temperature [°C] [max]

80 °C

Operating temperature [°C] [min]

-40 °C

Operating temperature [°F] [max]

175 °F

Operating temperature [°F] [min]

-40 °F

Output signal

Dual

Packing format

Multi pack

Pin 1

+ supply

Pin 2

- common

Pin 3

Modbus A

Pin 4

Modbus B

Pin 5

Relay input

Pin 6

Relay NO

Pressure range [bar] [max]

1.2 bar

Pressure range [bar] [min]

0.7 bar

Pressure range [psi] [max]

17.4 psi

Pressure range [psi] [min]

10.15 psi

Quantity per packing format

20 pc

REACH Candidate List substances

No

Recovery time [min]

<5

Refrigerants

R454C

Rel. Humidity conditions

0 - 100

Response time [S]

<15

Specification key

DST G54C-AB-15-0AAB-LC003-M

Supply current max. [mA]

300 mA

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

UL evaluated

Yes
